Small Buoy Decanter for SBR Pool

Payment Type: T/T

Supply Ability: 260 Sets Per Month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LBD-5

Brand: Loren

Applicable Industry: Food &Amp; Beverage Shops, Manufacturing Plant, Food Shop, Machinery Repair Shops, Construction Works, Food &Amp; Beverage Factory, Energy &Amp; Mining

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Gear

Old And New: New

Place Of Origin: China

Warranty Period: 1 Year

Service System: Video Technical Support

Design: Compact

Without: Drive Power, Embedded and Wearing Parts

Operating Cost: Very Minimal

Main Structure: SS304

Mounting And Running: Easily

After Sales Service: Within 8 Hours Reaction and Solution

Full Process Design: Support

Added Value Service: Available and Diversified

OEM ,ODM Service: Available

Product Description

Small Buoy Decanter for SBR CAST Pool, ETP, WWTP

Unpowered Float Type Water Decanter Decanter Definition

It Is Always Collecting Clear Water At A Specified Depth Under A Fluctuating Surface. Our Unique Anti-Slag Ball Valve Design Ensures The Collection Of The Supernatant Does Not Contain Any Surface Scum.

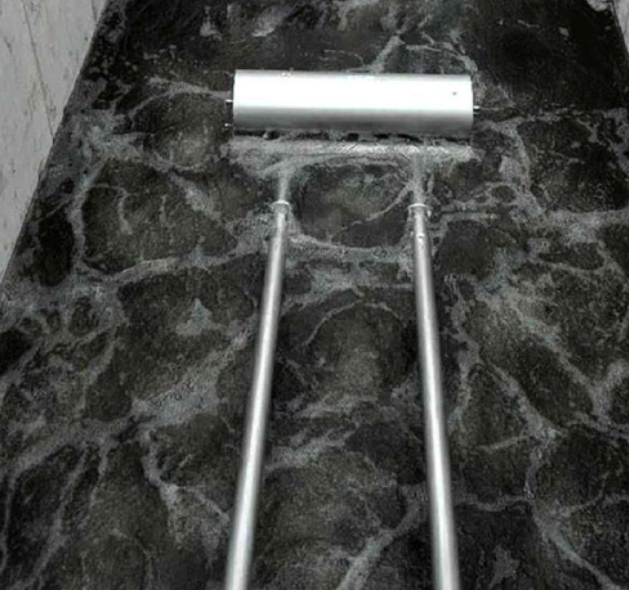

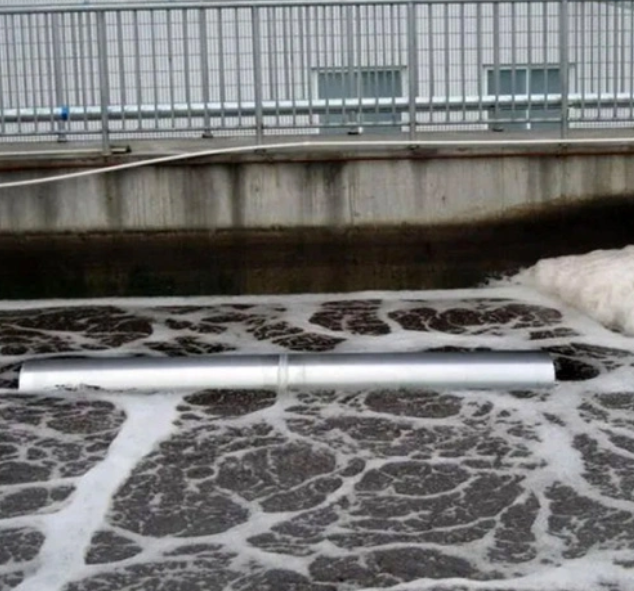

The decanter relies on the buoyancy of the buoy to slowly float up along the guide rod and floats on the water surface. When the aeration starts in the pool, the water outlet valve of the decanter is closed, and the water inlet is located at the bottom of the buoy. The Air Isolates The Water Inlet From The Sludge Generated During Aeration.

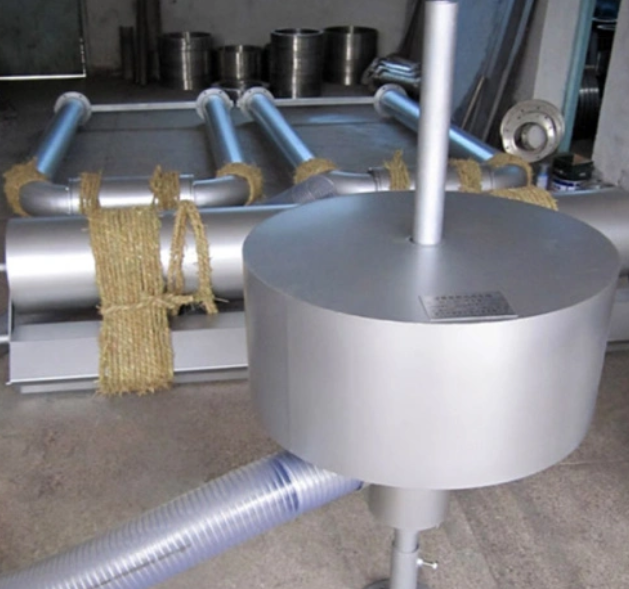

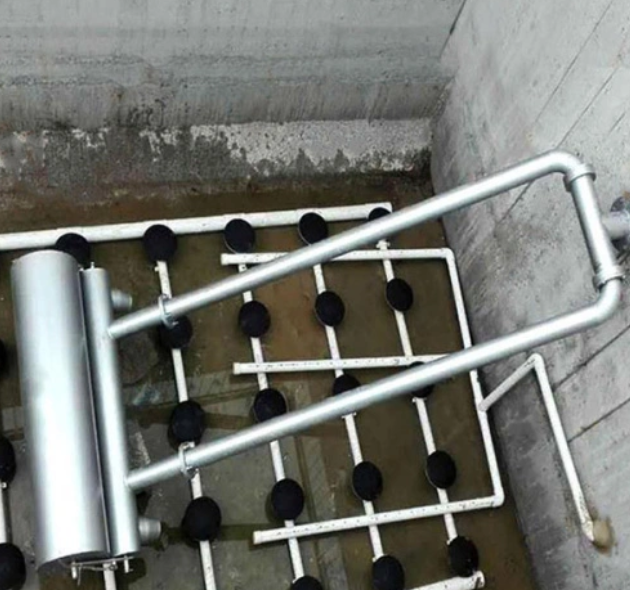

The Small Buoy Decanter Is Suitable For Small Pools With A Length Of Less Than 3 Meters. It Connects The Drainage System With The Water Collection System Through A Steel Wire Hose. The Water Collection System Is Composed Of A Buoy And A Water Inlet Tank. The Inlet Head Of The Device Can Change With The Change Of The Water Surface. When Draining, The Scum On The Water Surface Enters The Drain Pipe. When Starting To Drain, Open The Electric Valve, and The Floating Inlet Head Starts To Drain. When Stopping Draining, Just Close The Electric Valve.

Loren SBR Decanter Feature and Advantages

-No Drive System without Any Power Consumption

- Minimal Operating Cost
-No Need Any Embedded and Wearing Parts

-Stainless Steel Structure Ensure Long Life and Low Maintenance Cost

- Runtime Decantation Water Velocity Uniformity

- U-Shaped Rotational Support Assure Compact and Smooth Working

-The Dewatering Range Can be Adjusted Via Electricity Valves

Low Cost Float Cylinder Decanter Decanter Working Process:

SBR, Cyclic Activated Sludge System (CASS), Blower Fan, Sludge Precipitation and Finally Solid-Liquid Separation:

LBD Serious SBR Decanter Model and Design Condition
As long As Provide Us the Weir Length, Depth, Treated Capacity, We Can Make Different Styles and Make Competitive Solution as per Your Different Requirement.

Model	Capacity	Decanter Depth
LBD-5	5 T/H	500-4000 mm
LBD -10	10 T/H	500-4000 mm
LBD -20	20 T/H	500-4000 mm
LBD -30	30 T/H	500-4000 mm
LBD -40	40 T/H	500-4000 mm
LBD -50	50 T/H	500-4000 mm
LBD -70	70 T/H	500-4000 mm
LBD -80	80 T/H	500-4000 mm
LBD -100	100 T/H	500-4000 mm

Applicant

-CASS Tank

-CAST Tank

-ICEAS Tank

-DAT-IAT Tank

-SBR Tank

-Municipal STP

-Industrial ETP

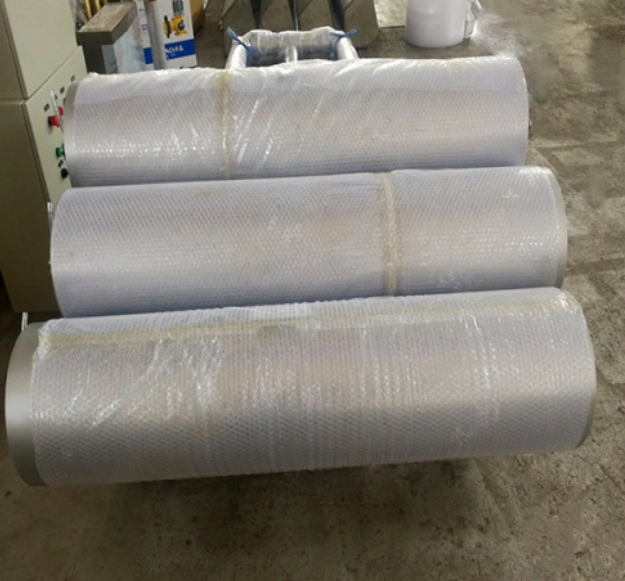

Packaging & Delivery
