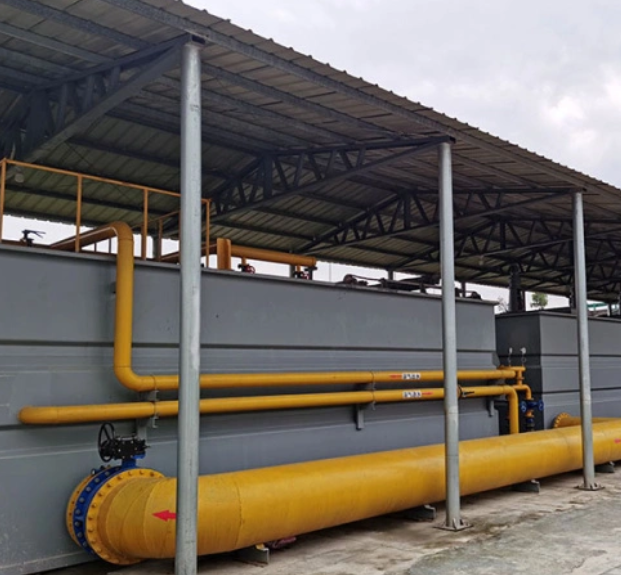

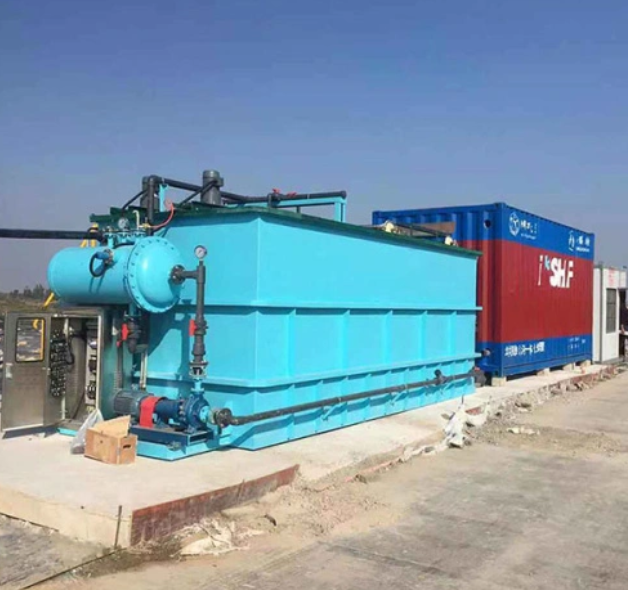

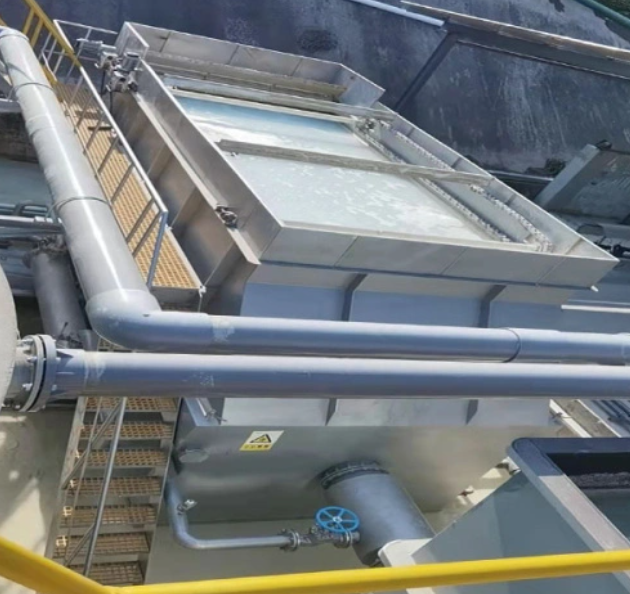

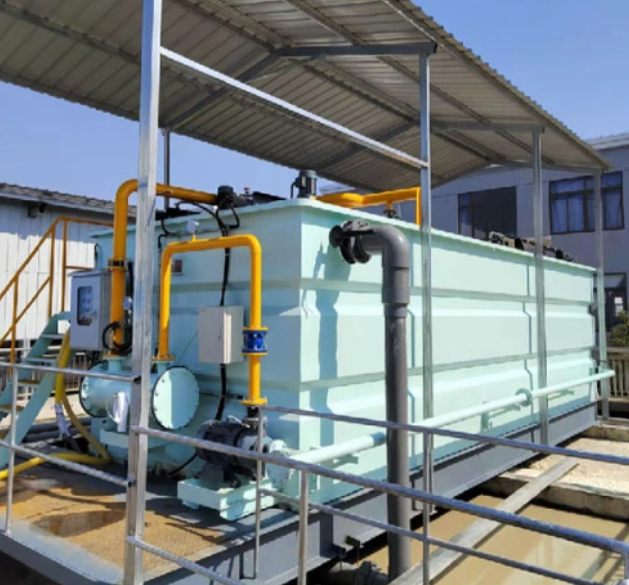

Rectangulare DAF Machine for Water Treatment

 

Rectangulare DAF Machine for Water Treatment

Payment Type: T/T

Supply Ability: 25 Sets per Month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LIRD120

Place Of Origin: China

Single Unit Capacity: 1CBM-1200 CBM

Optional Selected: Built-in Reaction Tank, Bottom Hopper, UF film etc

Structrue Optional: Mild Steel, SS, Duplex SS, FRP

Coating: Epoxy Resin Coal Tar Pitch， FRP, Rubber or Others

OEM ,ODM: Availble with 3D drawings

Budget Customized: Design or Solution

High Peformance: Over 97% Removal Ratio with High Fast

Applicant: Most widely used in Every Waste Water

Main Function: Reduce Color , TSS, BOD5 ,

Product Description

LRD Series Combined Rectanglular Dissolved Air Flotation Unit

Feature

-Customized budget and Multiple Design to meet diversified Demand

- Micro Bubble Size Below 30um,

-Some Applicant can use micro nano Generator Technology to get more fine bubble

-Low Pressure Operation and Lower Energy Consumption

-Over 99% Dissoved Air Resolution Ratio and Releasing Efficiency

- Easy Opeation and Simple Management with Small Footprint

-Strong Anti-Cogging Design Air System

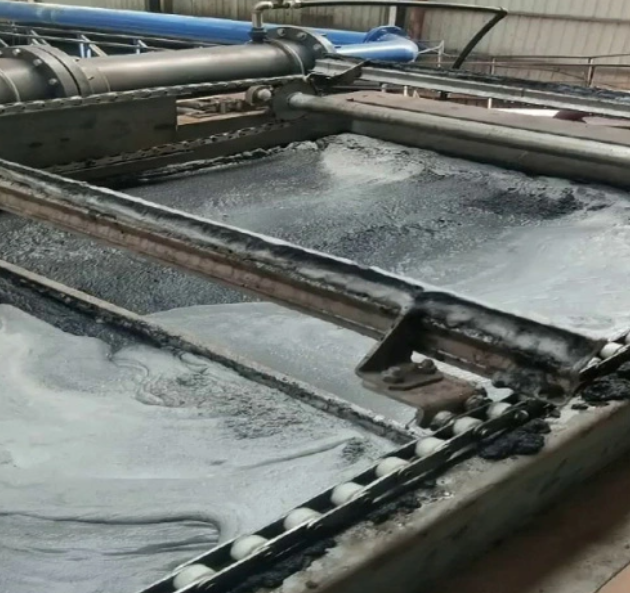

-Stable Train-Plate Skimmer assue Scum Skimming Performance

-Can be Optional with UF, EC, Filler in The DAF Tank to get more COD or TSS Removal Ratio and Reduce the big load for the next process

-Can Combined with Built-in Reaction Tank with Agitator, Inclined Plates inside , Hopper on the bottom as well as other Change like Dissolved Air Ways to get idea Performance

Working Principle

The air Which will be insert into the Dissolved Air Tank Through Air Compressor or Site Air Source Mixes with The Fresh Water to Generator Micro Air Bubble Under 0.35Mpa pressure to form dissolved air water which will be Released Suddenly to Generate Micro bubble who will Taken the Coagulant Suspend Solid Adhered onside into the DAF Tank Surface to form Scum Layers , while the Clean water will remain under the layer to go in the clean water pipe or back to the re-flux air water pipeline . the scums on the surface will be skimmed by the Scraper to generate solid liquid Separation.

Flow Diagram

LIRD Daf PID

Main Technical Parameter

Model	Capacity （m3/h）	Air Volume（m3/h）	Pump (kw）	Compressor （kw）	Skimmer（kw）	Run Weight (kg)
LRD-1	0.5～1	0.3～0.5	0.55	0.55	0.18	1800
LRD-2	1.5～2	0.6～1	0.75	0.55	0.18	2100
LRD-3	2～3	1～1.5	0.75	0.75	0.37	3600
LRD-5	3～5	1.5～2	1.1	0.75	0.37	4400
LRD-10	5～10	2～3	1.5	0.75	0.37	9400
LRD-15	11～15	3～5	2.2	0.75	0.37	12400
LRD-20	16～20	5～7	2.2	0.75	0.37	15000
LRD-25	21～25	6～8	3	0.75	0.37	18000
LRD-30	26～30	8～10	3	0.75	0.37	21000
LRD-40	31～40	10～15	5.5	0.75	0.37	27000
LRD-50	41～50	15～18	7.5	1.5	0.37	33000
LRD-60	51～60	18～20	7.5	1.5	0.55	40000
LRD-70	61～70	20～25	11	1.5	0.55	45000
LRD-80	71～80	25～30	11	1.5	0.55	52000
LRD-100	91～100	30～35	15	2.2	0.55	68000
LRD-120	101～120	35～45	15	2.2	0.55	76000
LRD-150	121～150	45～55	15	2.2	0.75	85000

The Above Data Only For Reference , Please Subject To Our Final Confirmation

Application

1. Industr ial Waste Water

-Food & Beverage

-Dairy

-Paper Mill

-River Purifier

-Algae Removal

-Textile , Dyeing and Printing

-Tannery

-Cement

-Steel

-Plastic and Rubber

-Slaughter House

-Aquaculture

-Petroleum and Petro-chemistry

-Pharmacy

-Agriculture

-Other Combined Industria WW

2.Municipalities

Primary Treatment Before Biological; Biological Sludge Clarification; Biological Sludge Thickening; Tertiary Treatment.

3.Potable water

Surface Water Clarification; Desalinization Plants; Algae Removal

4. Seawater Desalination

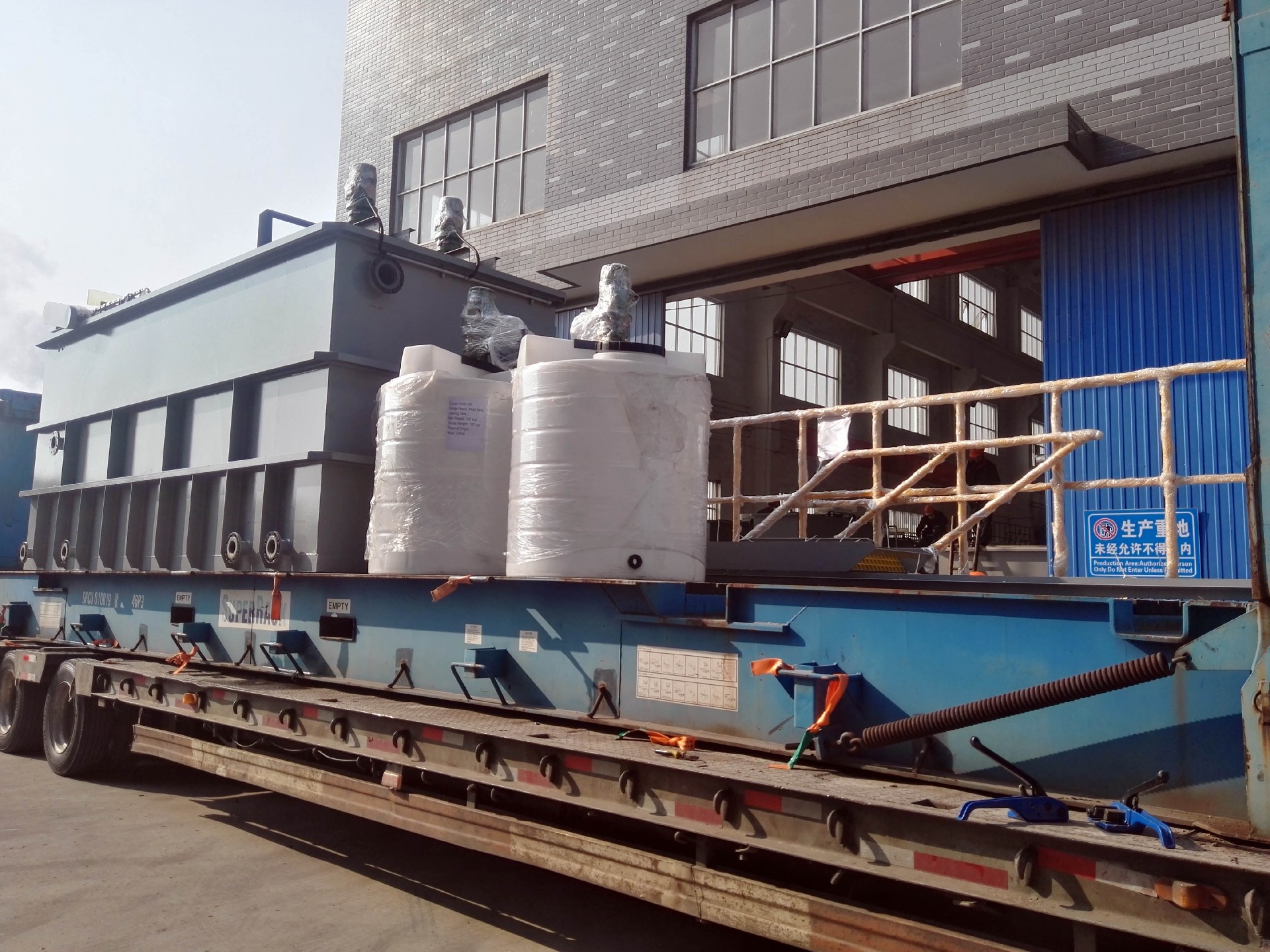

Packaging & Delivery

Fast within 30 days
