CAF Machine for Oil Water Seperator

CAF Machine for Oil Water Seperator

Payment Type: T/T

Supply Ability: 80 Sets per Month

    Contact Now
    Share:
    Product Attributes Supply Ability & Additional Information
    Product Attributes

    Model No.: LCAF-100

    Brand: Loren

    Product Category: Animal Oil

    Species: Chicken Fat, Duck Fat, Fish Oil, Cod Liver Oil, Goose Fat, Lard, Mutton Fat, Seal Oil, Whale Oil

    Processing Technology: Refined

    Package: Bulk

    Place Of Origin: China

    Use: Cooking

    Aerator: Air Touch Dispensor with fast releasing

    Compact Room: Large Capacity with small footprint

    Operation: simple and easy with no maintenance

    Can Combined With: Disc Oily Water Purifier or Decanter

    OEM ODM Service: Available

    Optional Design: EX-Plosion Drive System

    Optional With: Top cover with exhausted gas Releaser hole

    Material Optional: CS, SS, Duplex Steel, Plastic

    Multiple Coating Option: Expoxy , FRP, Rubber and others

    Feature: Large Bubble adhere to f


    Product Description

    Definition- Loren oil grease and TSS Removable CAF Brief

    LCAF is specifically designed system for removal of greases, jelly and suspended solids (SS) in industrial or municipal wastewater.


    Cativation Flotation Machine Feature

    -No circulating pump, air compressor and pressure vessel;

    -Never Jam or blocking

    -Savings operating costs and floor space;

    -Simple, and compact structure without maintenance;

    -Especially applied for oily wastewater treatment.


     Applicant Range of our Aeration DAF System

    -This kind of Vortex concave floating major Suitable for:

    -Oily wastewater treatment of Petrochemical processing industry .

    -Oil industry

    -Mining industry

    -Mechanical process industry ,

    -Poultry slaughter industry

    -Pulp and paper making industry

    -Dairy processing likewise


    Craft art

    In drainage treatment process, Flotation separating technology is the most effective method for removing micro suspended solids whose specific density is near than that of water.

    LCAF is a good new sewage separating and purifying equipment especially for separating grease,Jelly,and suspended solid in the in the industrial and city water by way of

    proportionately transforming the micro-bubbles into the water directly through specially-designed bulk gas impeller instead of adopting  complex air-dissolved technology  with no

    obstruction, easy operation

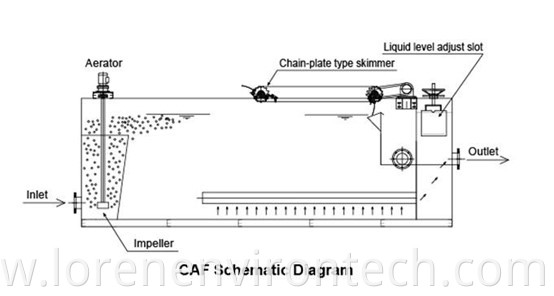

    Working Principle Diagram

    LCAF layout


    Main technical parameter of loren LCAF Series DAF Unit

    Model

    Flow

    (m3/h)

    Long

    (m)

    Wide

    (m)

    High

    (m)

    Aerator

    (kw)

    Skimmer

    (kw)

    Total power

    (kw)

    LCAF-1

    1

    1.4

    0.55

    1.1

    0.37

    0.18

    0.55

    LCAF-3

    3

    2.5

    0.8

    1.3

    1.5

    0.37

    1.87

    LCAF-5

    5

    2.5

    1.0

    1.3

    1.5

    0.37

    1.87

    LCAF-10

    10

    3.0

    1.2

    1.3

    1.5

    0.37

    1.87

    LCAF-15

    15

    4.0

    1.2

    1.3

    2.2

    0.37

    2.57

    LCAF-20

    20

    5

    1.2

    1.3

    2.2

    0.37

    2.57

    LCAF-30

    30

    5

    1.6

    1.8

    2.2

    0.37

    2.57

    LCAF-40

    40

    6

    1.6

    1.8

    2.2

    0.37

    2.57

    LCAF-50

    50

    6

    1.8

    1.8

    4.4

    0.37

    4.77

    LCAF-75

    75

    7

    2.4

    1.8

    4.4

    0.55

    4.97

    LCAF-100

    100

    8

    2.4

    1.8

    4.4

    0.55

    4.97

    LCAF-150

    150

    11.5

    2.4

    1.8

    6

    0.55

    6.55

    LCAF-200

    200

    15

    2.4

    1.8

    9

    0.55

    9.55

    LCAF-300

    300

    15

    3.1

    1.8

    12

    0.55

    12.55

    LCAF-400

    400

    17

    3.6

    1.8

    12

    0.55

    12.55

    LCAF-500

    500

    21

    4.5

    1.8

    15

    1.10

    16.10
