Hydro Static Sieve Sludge Water Screen

Payment Type: T/T

Supply Ability: 80 Sets Per month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LSS90

Brand: Loren

Status: New

Applicable Industry: Hotels, Farms, Food &Amp; Beverage Shops, Garment Shops, Restaurant, Building Material Shops, Food Shop, Manufacturing Plant, Printing Shops, Machinery Repair Shops, Construction Works, Food &Amp; Beverage Factory, Energy &Amp; Mining

Out-of-warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Bearing

Place Of Origin: China

Warranty Period: 2 Years

Productivity: 500l/Hour, 10000l/Hour, 750l/Hour, 100l/Hour, 1000l/Hour, 20000l/Hour, 250l/Hour, 2000l/Hour, 3000l/Hour, 125l/Hour, 4000l/Hour, 200l/Hour, 5000l/Hour, 7500l/Hour, 50000l/Hour, 2500l/Hour

Sieve Strip: Arc Plate

Gap Optional: 0.25mm-2mm

Auto Work: By Gravity and Angle Mounting

No Need: Operator or Drive Mechanisim

Stable: Solid Collecting and Sepration

Treated Capacity: Large

Optinal Choose: Slag Hopper or Slot , Spray Nozzle

Optinal Combined With: Screw Compactor with Coneyor

OEM , ODM , Servie: Available

No: Clogging or Blocking

Product Description

Hydraulic Static Screen HydrauSceen Unit , Hydro Sieve, Water Conservancy Screen

Definition

LSS Series Hydraulic Fine Grille is a Small, Unpowered Separation Screen For Filtering Suspended Solids, Floating Debris, Sediment & Other Solid Or Colloidal Substances.

Features

-Take Advantage of Water Flow Gravity Action

-Can Remove Debris Size Over 150μm

-Optional Choice Gap:0.15,0.25,0.5,1.0,1.5,2.0 mm

-Capacity Has a Positive Linear Relationship With The Gap & Screen Width

-No Energy Consumption Due to Now Drive Power

-Large Treating Capacity Of Single Unit

-No Blocking

-Easy For Maintenance

-Stainless Steel Structure Assure High Mechanic Strength

-Occasional Artificial Joints Flush Gate To Prevent Blockage;

Applicant

The Static Screen Can be used for the Following Function Such As

-The Primary Treating Process to Replace Sedimantation Tank

-Strengthening The Biological Treating Process

-Solid-Liquid Separation

-Slag Concentration

Typical Application Industry Below

-Paper-Making Industry--Recycling Fiber, Removing Solids

-Tannery Wastewater-- Removing Feather, Oil & Grease

-Slaughterhouse Wastewater-- Removing Bag, Fur, Grease & Feces

-Municipal wastewater -- Removing Fur, Debris

-Alcohol Plant & Starch Factory --Removal Vegetable Fibre, Hulls, Groceries -Sugar Processing Plant

-Food Processing Factory

-Textile Industry

- Printing & Dyeing Factory

-Petrochemical Plant

-Small Drainage Project Pretreatment

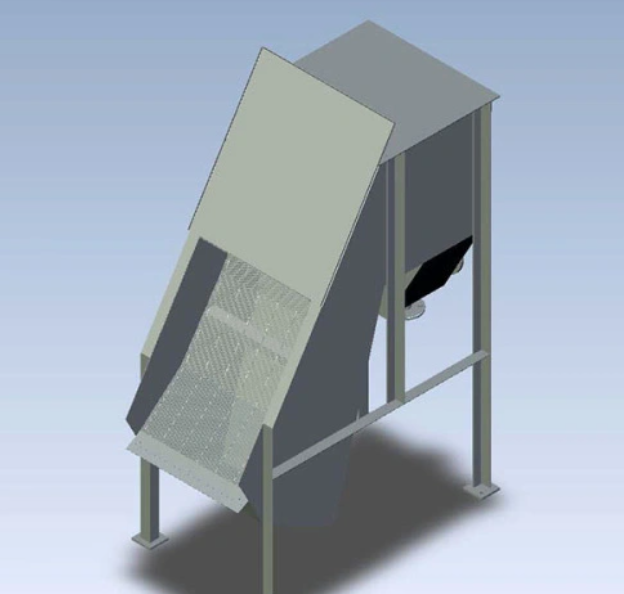

Main Component

Body Frame, Curved Screens, Out Of The Water, The Tap Outlet, Warehouse Storage, Mounting Bracket ,Optional Choice of Spraying Nozzle and Slag Hopper or Blocking Steel

Specification

Gap (mm)	0.25	0.5	1.0	1.5
Model	Capacity ( m3/h)	Capacity ( m3/h)	Capacity ( m3/h)	Capacity ( m3/h)
LSS60	9	22	40	60
LSS90	12	35	60	80
LSS120	18	45	80	100
LSS150	22	55	95	130
LSS200	28	72	125	160

The Above Data is only for Reference

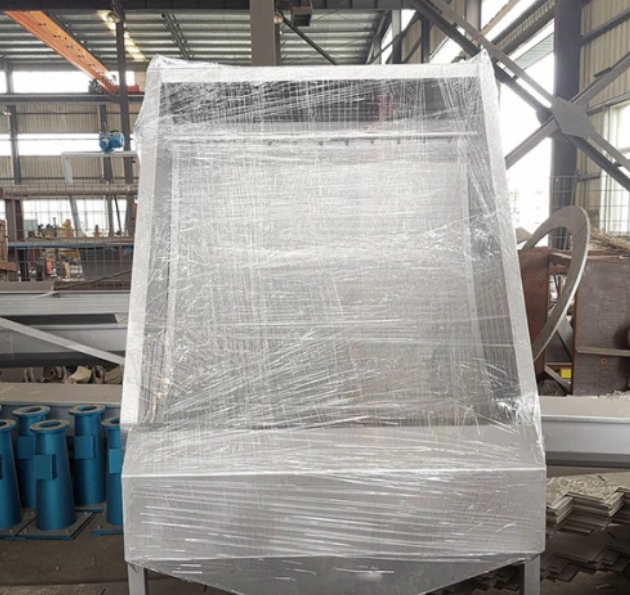

Packaging & Delivery
