Hight quality Walkway Nylon step grating

 

Hight quality Walkway Nylon step grating

Payment Type: T/T

Supply Ability: 20 Sets Per Month

Contact Now

Product Attributes Supply Ability & Additional Information

Product Attributes

Model No.: LNS600;LNS800;LNS1000,LNS1200;LNS1400

Brand: Loren

Status: New

Warranty Period: 2 Years

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 3 Years

Core Components: Bearing, Motor

Place Of Origin: China

Core Selling Point: Multifunctional

Essential Function: Sludge or Slag Purifier

Mesh Flow Speed: 0.6-0.6 meter per second

Allowed Water Level Gap: 300mm

Open Porosity: Over 90%

Honeycomb Filter Plate: More Efficiency and Long Time Life

Module Assembly: Reduces Welding

Energy Consumption: Lower

Water Consumption: Lower

Washing Water Pressure: 4 Bar

OEM ODM: Provided

Product Description

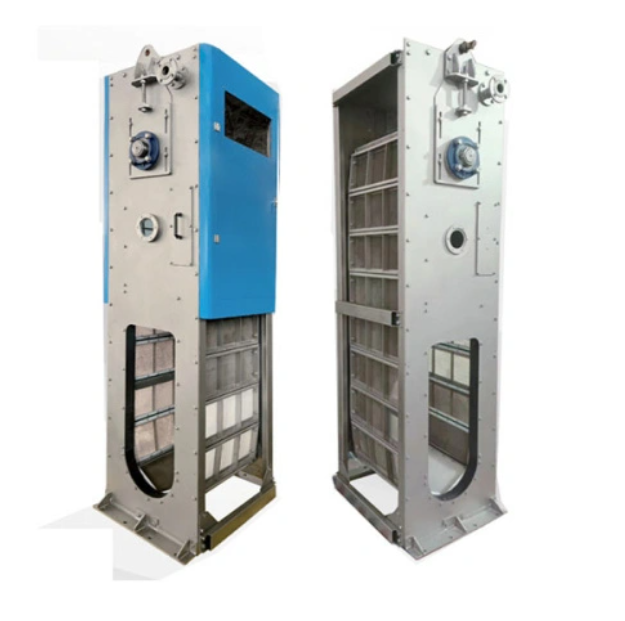

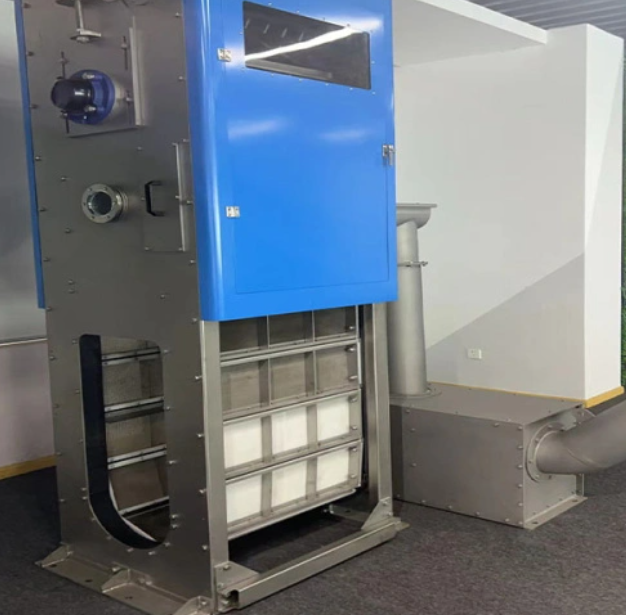

Assembled None Metal Mesh Stepped Screen

Definition

Sewage Slag Carry on Solid Liquid Separation through Honeycomb Filter Mesh Plates Lifting under Gravity and Auto Spraying washing

Composition of Loren Durable Sewage Step Gratings Grille

-Main: Frame, Drive Motor , Rotary Honeycomb Mesh Plates , Chain and

Drive Device, Sprayer etc

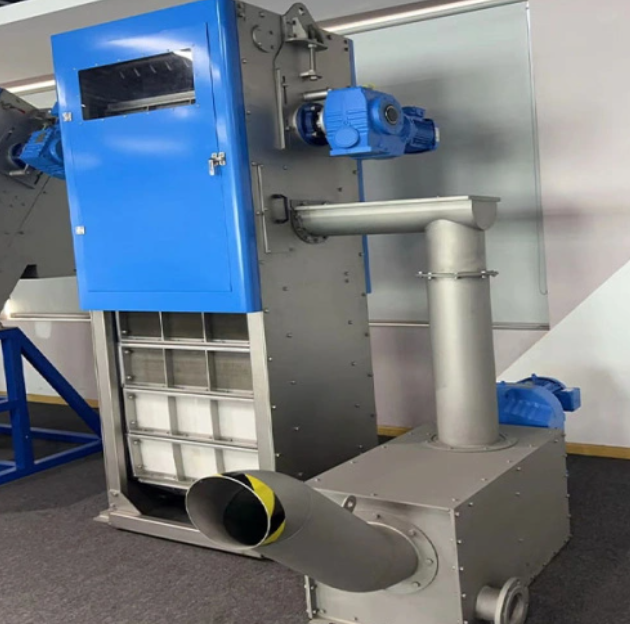

-Auxiliary: Slot, HP Compactor, E-box, Boost Pump and Pipelines

Feature & Characteristic

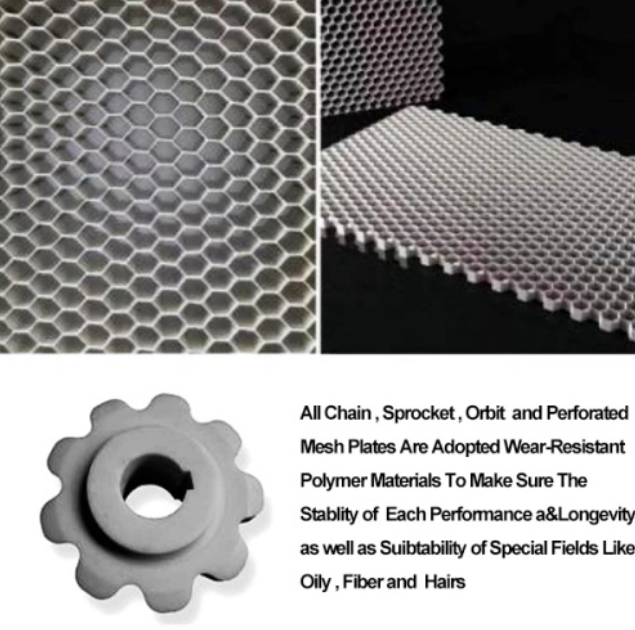

- Adopt Over 90% Open Porosity Honeycomb Filter Plate to Remove Hair and Fiber More Effectively With Little Room And Large Flow Capacity

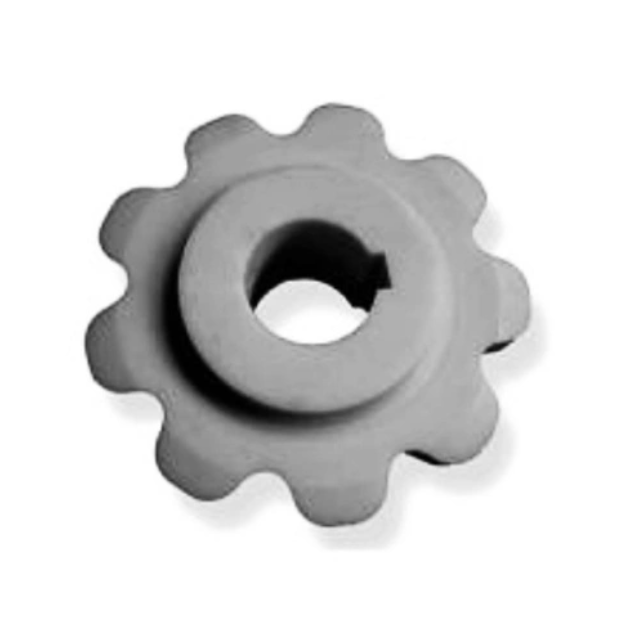

- Adopt Wear-Resistant Polymer Material Chain, Sprocket & Orbit

- Module Assembly to Reduce Welding

- Lower Energy Consumption

- Lower Noise

- Lower Water Consumption

- Small Foot Print

- Longevity with little Maintenance

- More Applicant

- 2-6mm Mesh Gaps Safeguard High Performance

-Effectively Remove Flat Solid, Fibers,Hairs,

-Easy Operation and Stable Running

-Full Auto Control

Applicant

-Upgrading of Waterworks

-STP

-Municipal STP

-Industrial Waste Water Treatment

-Regenerated Water Factory

-Special Fields Sewage

-Textile Mill Sewage

-Paper Mill Sewage

-Slaughter House

-Pharmacy Mill Waste Water

Specification

Model	Flow (M3/h)	Water depth (m)	Filtration Accuracy (mm)	Interception Rate (%)	Motor (kw)
LNS600	450-1080	≥1	1-6	92-98	0.37
LNS800	580-870	≥1	1-6	92-98	0.37
LNS1000	750-1080	≥1	1-6	92-98	0.37
LNS1200	580-1330	≥1	1-6	92-98	0.37
LNS1400	1040-1540	≥1	1-6	92-98	0.55
